Dominic DeMarco

Hi There! (I’m the one on the left)

Welcome! One way or another, you’ve stumbled upon my projects github.io page. Complete with mandatory “Look I’ve gone outside” software dev photograph. My name is Dominic DeMarco, my education background is a BS in Computer Science, and I have just under 10 years experience in the industry as a software engineer.

In my free time I enjoy exploring anything technical that has struck my fancy. A lot of these projects you’ll see are based around a loose “accomplish X with Y” intent, it’s the way I’ve found I best learn things… and it’s fun, too!

I’ve organized my projects in reverse chronological order. I’ll add and related links and provide a short description for your perusing pleasure.

These links will bring you to the associated headings to save your scroll wheel the trouble
Capacity-constrained variable bitrate video encoding framework
LLM Text Adventure Game
Vacuum Florescent Display Driver Board
Centurion CPU6 LLVM Backend
Nebula Client
FeO
Video ESRGAN Superres
Radio Board
Serial over LoRA
Python Racing Game Bot
Pascal-like Compiler
Sensor Movement Classification

Capacity-constrained variable bitrate video encoding framework

No code on github yet because I’m still fleshing out how I want to interact with this framework.

This is a project I’ve been writing in python to address the following problem I’ve come across recently.
I’m the owner of a small collection of physical media (movies and TV shows mostly)
We’re slowly but surely approaching the lifespan of older CDs and DVDs.
Instead of just backing up the raw data on these disks, I’ve made it a sort of personal challenge to squeeze as much video on a standard blu-ray disk as possible without sacrificing audio or video quality.

In this situation, when it comes to compressing a video with a modern codec, there is a choice to be made.
Either you can get a near-exact file size with 2-pass encoding and deal with compression artifacts in bitrate-demanding scenes, or you can encode with a CRF (constant rate factor), and make an educated guess (or several attempts) to encode the video file until you end up with something that fills up the majority of the disk, but ultimately leaves capacity unused.

I’m putting together something in an attempt to extract the best out of both worlds.
This framework allows the adding of an arbitrary amount of video files to a project, detects the cumulative runtime, and calculates the video bitrate required to fill near 100% of the blu ray disk’s capacity.
(audio is pre-processed and taken into account)
It will then run several CRF-based passes on a limited amount of video to determine a polynomial function that best represents the bitrate of a given CRF value.
This is the key step, because this relationship, while almost always following a power curve, is unique for each video type. A live-action movie with film grain will have a much different crf-bitrate relationship than an animated series, for example.
It then determines the best-estimate CRF value that will result in the target bitrate for the disk, with configurable fine-tuning behavior until a bitrate/size accuracy threshhold is reached.

LLM Text Adventure Game

No code on github for this one yet as I’m still in the experimental stage (and things in this area move quick)

I’m experimenting with the idea of creating a small cooperative dungeon crawler game playable through a medium like discord.
It relies heavily on large language models for the generation of room and item descriptions.
So far that aspect works well, everything is hosted locally with quantized models publically available from huggingface and run locally via llama.cpp.
Currently I’m vetting the capability of an LLM or NLP model to evaluate the viability of play input.
For example if a user tries to “search for water” in a desert, the model should return a low rate of success compared to “search for mushroom” in a forest.

It’s a great exercise in exploring the rapidly developing LLM ecosystem and getting experience with
a.) the various ways to host and interact with these models and
b.) understand their strengths and weakness in various situations.

Vacuum Florescent Display Driver Board

Crawling through the vintage electronics section of ebay one night I stumbled across some vintage IVL2-7/5 VFD displays that I thought could potentially form the basis of a fun clock project.
(Unique… I know)
This quickly turned into a lesson about how to actually drive a VFD display.

For anyone familiar with the subject matter, this turned out to be more involved than I initially anticipated almost entirely due to a teeny tiny wire called the “filament”
A VFD functions by redirecting a stream of electrons to slam into one (or more) phosphor-laden segments in a multiplexed fashion. The multiplexing methodogy is similar to any LED-based 7 segment display.
The source of these electroncs is a teeny tiny wire excited with some current. It can’t be too much current, that would destroy the filament… but it also can’t be too much voltage, as that wouldn’t produce enough current.
The datasheet for the small IVL2-7/5 VFD in particular, calls for about 2.4v across the filament at no more than 58mA.
“Great, so we’ll just use a small linear regulator or voltage divider with a ballast resistor to limit the current, easy.”
You might be tempted to think. Nope. This is a small enough voltage to sag across the thin filament’s relatively high impedence span, resulting in an uneven brightness across the display…
So we’ve got to resort to an AC current source (positively biased, to futher complicate things).

That was the motivation for this project, lets explore the result.

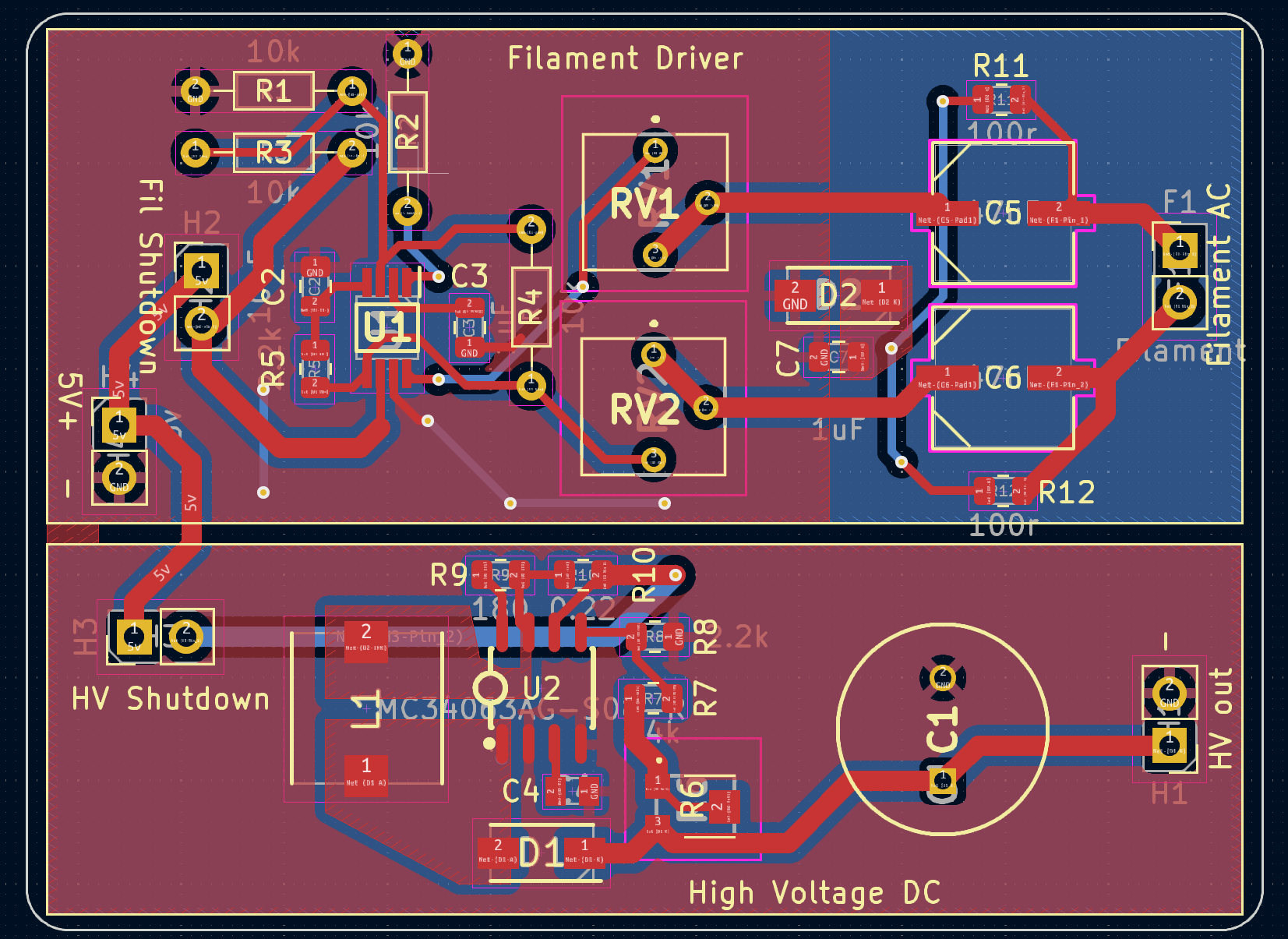

I implemented an adjustable AC power source specifically designed for a VFD filament (virtual center tap and all) using a chip designed for mono audio amplification in a self-oscillating configuration.
Additionally I implemented an adjustable boost converter to provide the high-ish voltage for the anodes of the VFD from a standard 5v supply.

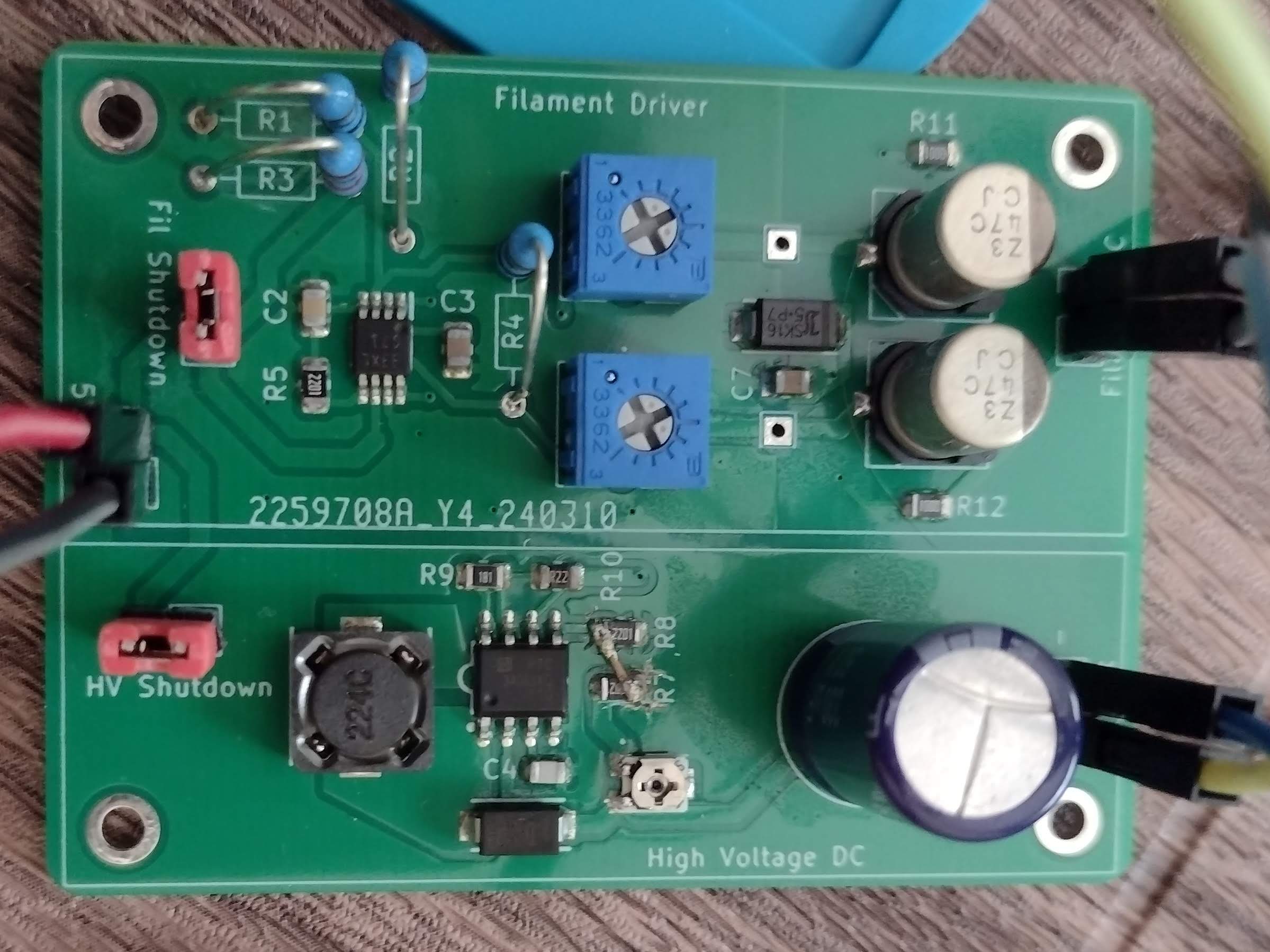

The result is the deceptively simple power supply board you can see below.
Each component needed to be carefully researched and compared with the principals of operation of a VFD.
This board is a useful tool that can be used to verify optimal voltage levels of a cathode (filament) and anodes (grid/segments) for nearly any low to mid voltage VFD.
In the future I plan on using the circuits vetted in this project to drive a display in a small desktop clock project.

Centurion CPU6 LLVM Backend

Code: https://github.com/ddemarco5/llvm-project-centurion

Midway through 2022 I stumbled across a very cool youtube channel, Usagi Electric.
He’s a very interesting dude based in Texas who found and restored a very unique minicomputer designed and built in the 80’s by a forgotten company called “Centurion”.
Through the course of his resoration work and video releases he cultivated a small community around the computer, and they reverse engineered the instruction set of the very unique processor that was dubbed CPU6.
This was very intersting to me, and I decided to take a leap into the deep end and try to write an LLVM backend for this CPU6 ISA. I’ve always been interested in LLVM but could never find a good reason to really sit down with it until this idea popped into my head.
I found an excellent (albeit slightly dated) resource from one of the developers of the RISC-V LLVM backend that was essentially a step by step git contribution history of what it takes to build a backend for LLVM, a process that is anything but straightforward.
I linked this resource in the git repo listed above for anyone curious about it.

I never got far enough into the process to start implementing the codgen elements of a backend, but I was successful in implementing a fully functional ASM backend for LLVM for the CPU6. This means my fork of LLVM is able to use LLVM tools (llvm-as and llvm-dis) to assemble and disassemble functional ELF binaries for a minicomputer from the 1980s! Pretty cool!

Currently the project sits in a good state, and if I ever get the LLVM itch again I can dive further into LLVM’s codegen.

Nebula Client

Code: https://github.com/ddemarco5/nebula_client
Nebula: https://github.com/slackhq/nebula

Nebula is a very cool VPN project by the folks over at slack. It’s a P2P encrypted UDP VPN that only needs a “lighthouse” server to connect two peers together. NAT punchthrough is built in, it’s performant, largely self contained, and easy to deploy. However, when I was playing around with it I noticed that it’s largely meant as a secure, direct, NAT bypassing means of client to client communication. If you wanted to provide access a subnet on the same machine (like a more traditional VPN system) the use case seems to be intended for single devices or small sections of a subnet, not all traffic.

This project (written in rust) is a wrapper around the nebula executable to allow it to act like a vpn client on a windows machine. This means the routing table is backed up, cleared, and set up in a way so all traffic EXCEPT the peer target is routed through the wintun adapter created by nebula. This is done by intercepting and parsing the stdout of nebula. When a message comes through that a peer has been connected, its IP address is pulled and added to the routing table to allow traffic to flow. It will also clear the DNS server and set it to the nebula peer to ensure that 100% of traffic is transmitted through the nebula connection.

This project was an exploration into more advanced process control with rust, as well as to investigate the current state of direct windows API calls with rust.

FeO

Code: https://github.com/ddemarco5/FeO

I wanted to flex my rust muscles and play around with discord bot integration. I wrote it to initially cross-post submissions from an arbitrary reddit user to a discord channel. (Think project updates or a friend) Midway through development, fortuitously, youtube banned all the popular bots that were playing music in discord channels. I figured this was a perfect opportunity to write my own. This project uses libraries written to interface with discord text channels and voice calls, and I wrote an easily expandable system for advanced command processing.

Commands are listend for in a specified channel, parsed, and listeners are created for youtube url songs specified. The bot will then scan the discord server’s voice calls searching for the user who called it, join the call, and begin playing the audio stream that it transcodes to opus insitu.

Video ESRGAN Superres

Code: https://github.com/ddemarco5/VideoSuperRes

Born of the idea of upscaling old animation and a want to learn the pytorch framework. With some pointers and domain knowledge from a friend, this implementation of ESRGAN was written. A custom video frame extractor was developed to make dropping in new files easy and to keep disk space down. Results with it were promising, but free time and vram limitations have put it on pause.

Radio Board

Circuit Design and PCB: https://github.com/ddemarco5/design-pcb
Code: https://github.com/ddemarco5/RadioCode

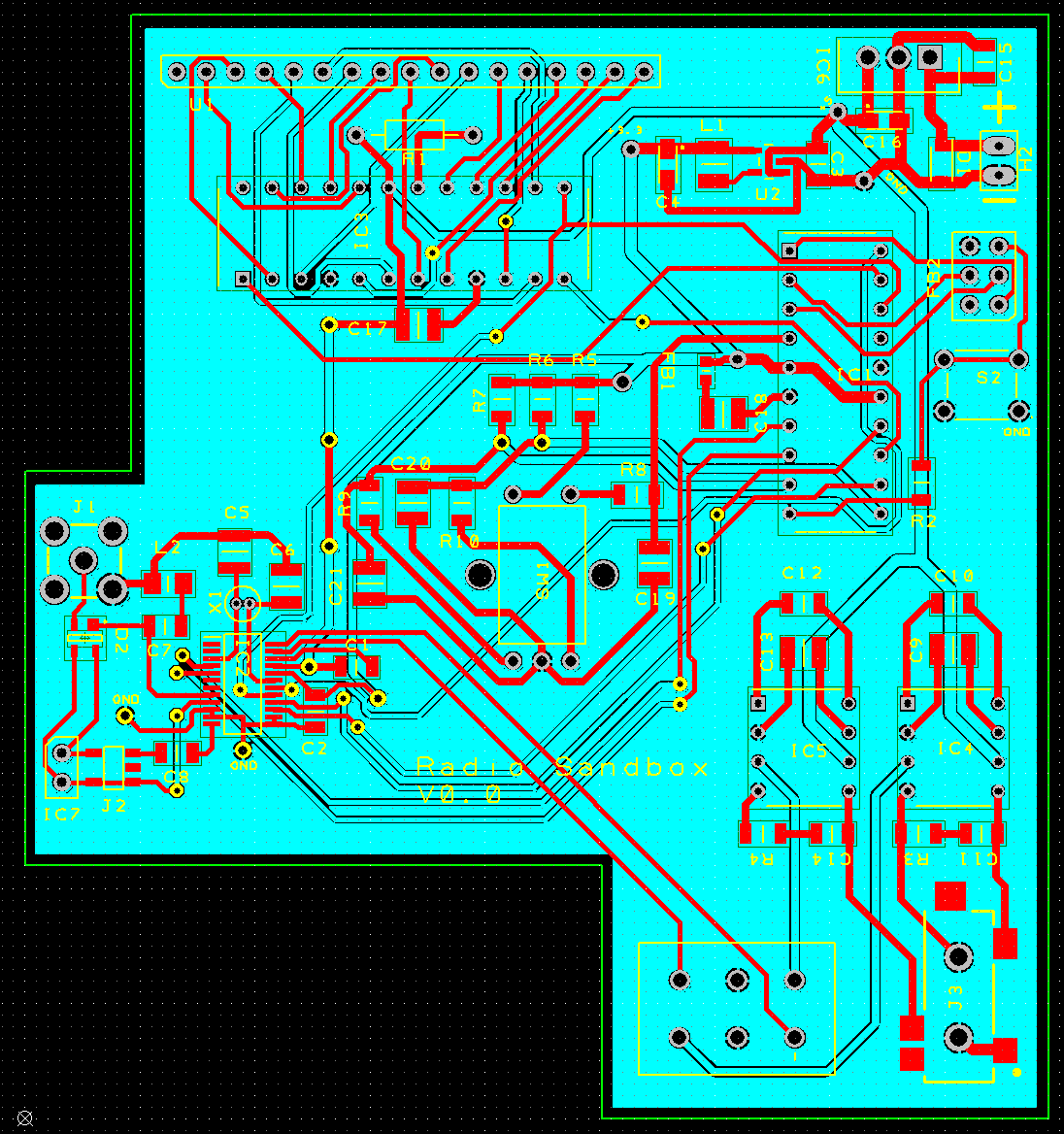

My first foray into circuit design and construction, and my current work in progress. The design was largely based around what parts I had gathered in my dragon’s nest of electronics. Before this, the most advanced I had gotten was a little breadboard tinkering and Arduino work. The general idea is to have a single board with 3 chips. A MAX7221 to drive the display, a SI4734-D60 to act as the radio, and an ATTINY861 to control the other 2. There’s a rotary encoder to enable control, and a 3.5mm jack to allow for audio output.

A couple goals motivated this project. I wanted to:

  1. Experiment with circuit design software and processes.
  2. Practice soldering SMD (There’s a .6mm pitch on one of those chips)
  3. Try AVR programming from scratch. No arduino libs.
  4. Get more experience with on-chip communication protocols. SPI, I2C, etc.
  5. Practice hardware debugging. I got more practice than I would’ve liked…
  6. Polish up my C++ by writing necessary code from scratch
  7. Program in a memory constrained environment (8k program storage, 512 bytes SRAM)
  8. Watch a cool old red bubble LED display live again

If I were to do it again I would’ve spend more time in the prototyping stage (but I’m limited by tools and space), as the first revision had some design errors in some of the more complex things I attempted (hardware debouncing with RC filter circuits, etc). I ended up having to frankenstein a portion of the traces and rework the design into something functional without having to rebuild the entire board.

As far as programming goes, at the time of writing, I am properly driving the MAX7221 via a software SPI implementation. I’m currently trying to get the (much more complicated) radio chip to respond.

Serial over LoRA

Hackaday link: https://hackaday.io/project/25677-chirppp-serial-over-lora
Radio Driver: https://github.com/ddemarco5/lora_driver
Serial Emulator: https://github.com/ddemarco5/chirppp

To date this is one of my favorite projects. The idea was to leverage posix standards to communicate and drive a pair of LoRA radio modules and expose a functional serial device to an end user of the system.

The things I wanted to accomplish in this project were:

  1. Learn and practice the Rust programming language
  2. Use a hobbyist site (hackaday) to log and reflect on progress made
  3. Practice UNIX environment programming by using sysfs and pty (pseudoterminal) syscalls
  4. Get more practice with cross compilation (ARMv6, ARMv7, MIPSEL)
  5. Develop an executable for OpenWRT

This was a really fun project to work on, it touched on a lot of diverse areas so it hardly ever got stale.\

I got to learn the modern systems programming language Rust! I highly recommend trying it out if you ever get the chance.

I learned about the entire (and surprisingly outdated) tty system in the typical unix stack, and about how sysfs works.

In the end, I was able to reliably use sysfs to communicate with and drive the LoRA modules on each of the platforms I compiled the program for. After I was sending packets back and forth, I was able to create a psuedoterminal pair that piped its input into the portion of the program that emulated a full duplex serial connection (the radios are packet based and there is no receving while transmitting!). In the end what this accomplished was a software device, typically /dev/pty0 or something of the sort, that a user could write to or read from. All traffic would appear on the pseudoterminal of the other computer, acting as if the two were connected via a wire.

Once I had serial communication between the two devices, I was able to use the old point to point protocol to send TCP/IP traffic between the two devices.

I had achieved a rudimentary wifi that at best could achieve a several kilometer range! Woohoo! … at least in theory.

In practice though, the radio devices at max speed had barely enough bandwidth to maintain a tcp/ip connection, let alone a usable one. It was also hampered by the fact the the (admittedly cheap) radio modules I bought suffer from frequent false positives when receiving packets. I might revisit this project to try and further debug the problem, or at the very least work around it.

Python Racing Game Bot

Code: https://github.com/ddemarco5/Redline

A simple project I decided to write when a drag racing game I was playing at the time got a little too repetitive.

This is a much smaller project than some of the others. The idea behind this one was to use python to try and interface with WinAPI to find the game’s window and its dimensions, emulate keypresses, and capture image data from the screen.

The actual logic behind the bot’s decisions were simple pixel triggers, the focus was more on getting some experience with the WinAPI.

Pascal-like Compiler

Code: https://github.com/ddemarco5/pascal_compiler

One of the last projects done in my college career.

Written in C, we had to create a compiler for a Pascal-like language that was defined in class. We used lex and yacc to generate the lexiacal analyzer and parser, but codegen was up to us. I unfortunately had to stop working on the project before codegen was 100% completed. It didn’t construct proper loops, but it worked for simple calculator-esque evaluation and assignment statements.

Sensor Movement Classification

Code: https://github.com/ddemarco5/SensorMovementClassification

An android application written for an independent study done in college. The app allowed a user to train on movement and later recognize those movements. The intention was to use it in a larger project where software would be able to recognize what its user was doing. Standing, sitting, running, etc.
